The venturi assembly is responsible for cycling water through the entire softener, making this an essential part to maintain. Cleaning the nozzle & venturi annually is an easy way to keep your water softener working at its best. Check out our step-by-step instructions and video below to get started!
Locate Your Serial Number & Model Number
Find the Serial Number on your softener's inside rim, right below the salt lid hinges.
Your Model number is the first seven digits of your serial number.

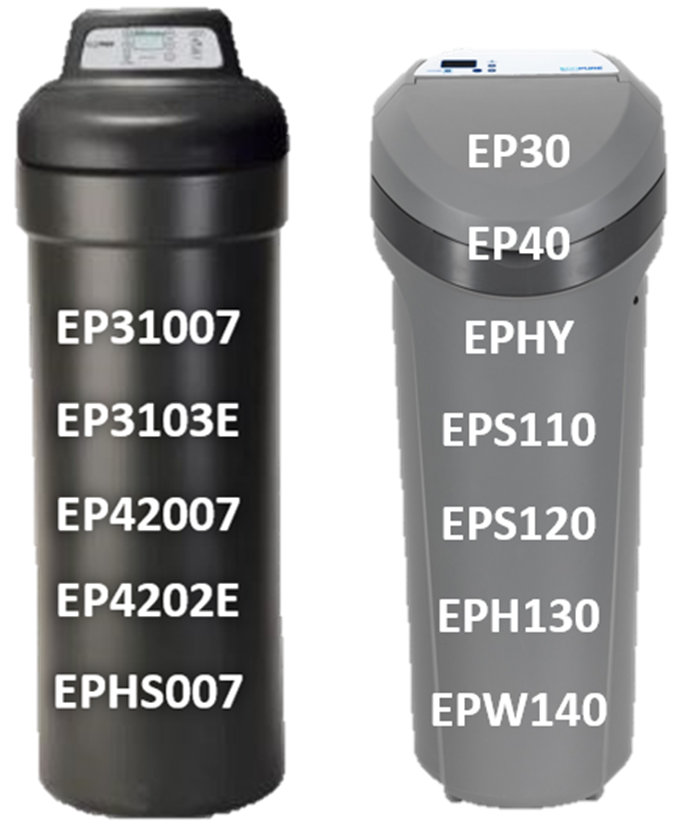

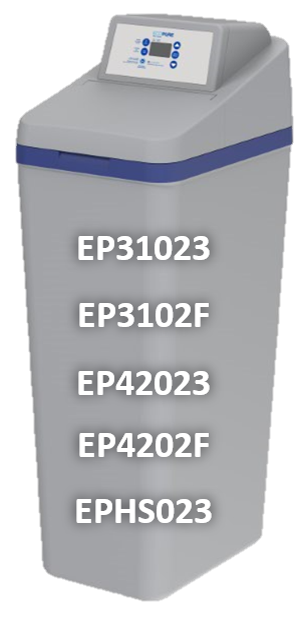

Click on your Model below to expand directions:
How To Video:
Cleaning the Venturi
1. Remove the top cover:
-
On the back of the unit, unhook the two clips that hold the cover onto the tank below (see photo). Flex/pull the cover out and away from the system at these clips.
-
There are two similar clips holding the front of the cover on as well. Slide the cover towards you to release these clips, being careful not to disconnect any wires. It is normal for the plastic cover to produce some noise as it shifts and bends.

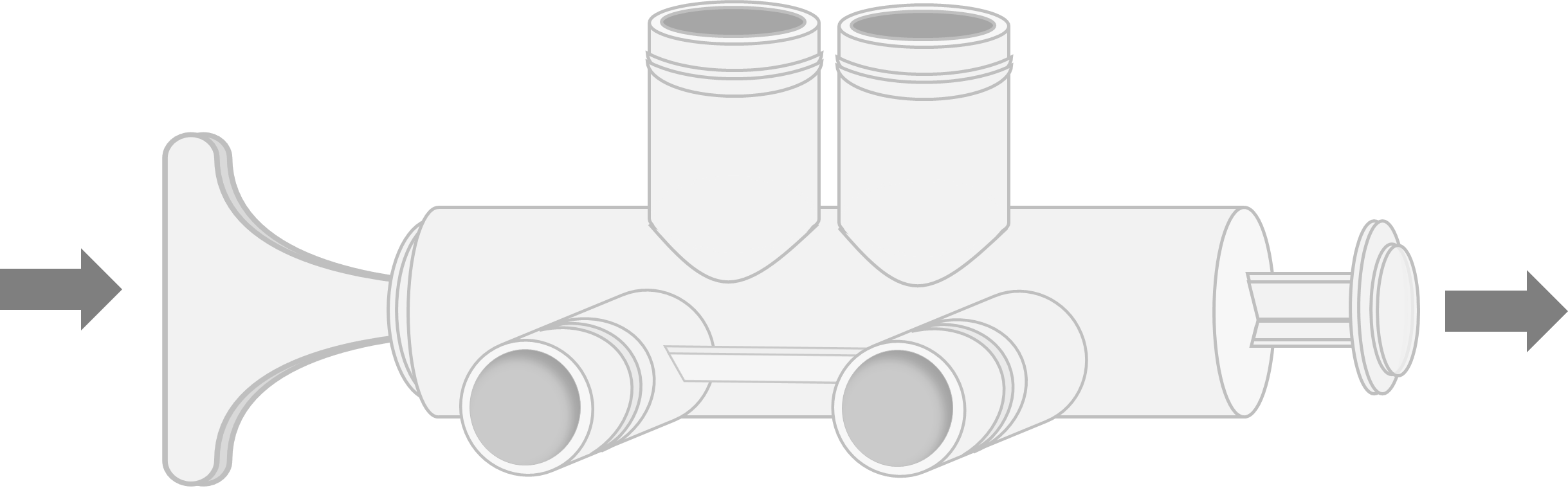

2. Next, bypass the water softener by pushing in the bypass handle in the back of the unit. This will stop water from flowing in or out of the softener while you work:

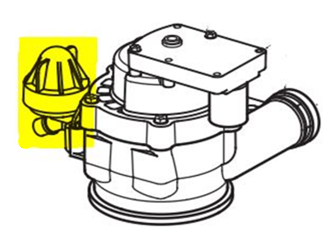

3. Locate the nozzle & venturi assembly on the left-hand side of softener's valve head. The venturi has a gray plastic base with a white dome-shaped cap (pictured below).
4. Unscrew the cap and carefully remove all seven internal pieces, leaving just the empty gray housing. Be sure to keep the parts in order.
5. Gently clean the internal parts with warm, soapy water. You can use a small paperclip or pin to clear any dirt or debris from the two black circular flow plugs. You'll also want to pay special attention to the flat black gasket, as this part can degrade over time. If any parts are worn or damaged, click here to purchase replacements.

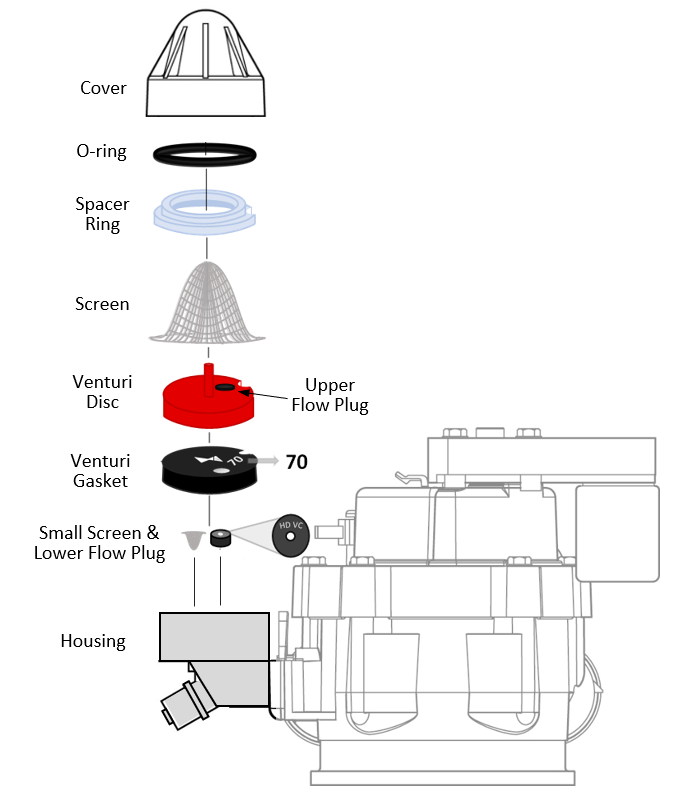

6. Finally, reassemble the venturi in the order shown below. You'll notice that the black gasket and flow plugs have numbers or letters printed on them – these should face UP when reassembling.

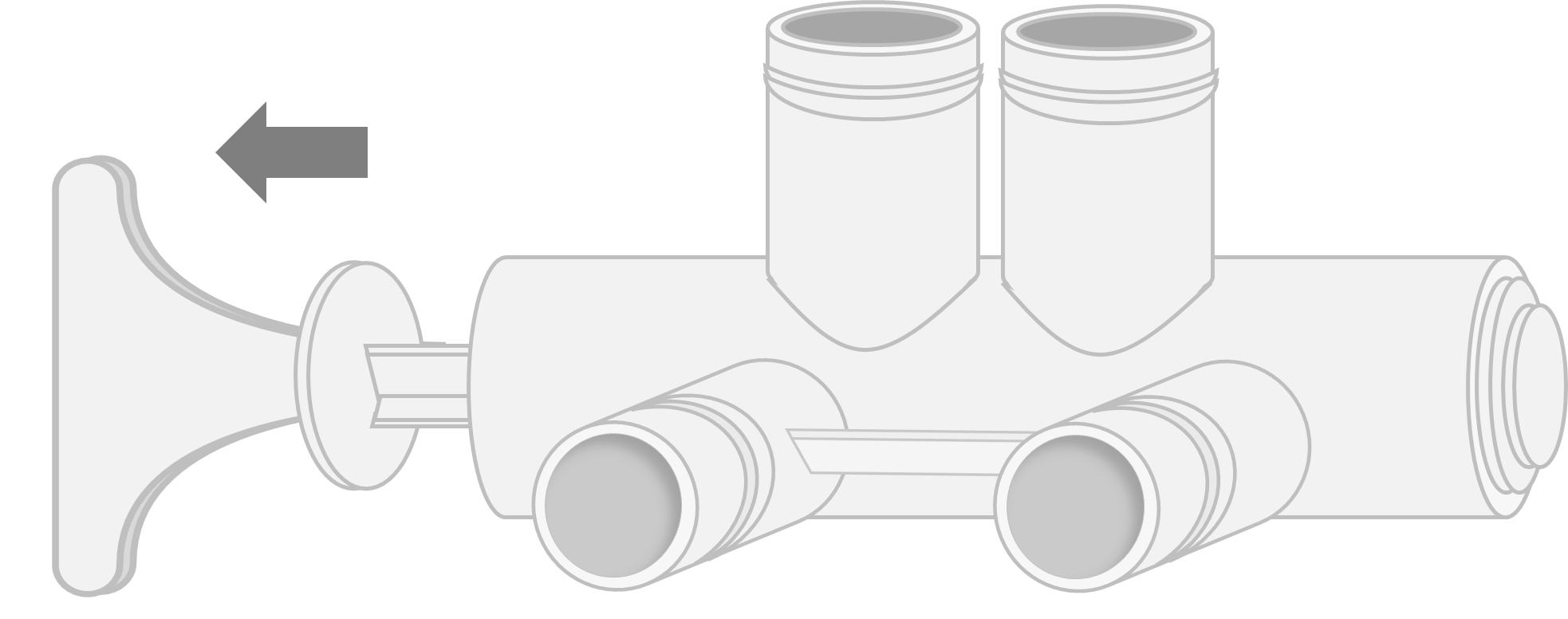

7. You're done! You'll just want to put the softener's top cover on and pull the bypass handle back out.
Please let us know if this article was helpful by voting below.
Related Articles
How To Video:
Cleaning the Venturi
1. Remove the top cover:
-

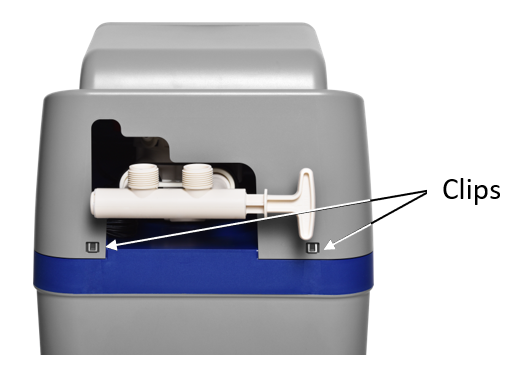

On the back of the unit, unhook the two clips that hold the cover onto the tank below (see photo). Flex/pull the cover out and away from the system at these clips.
-
There are two similar clips holding the front of the cover on as well. Slide the cover towards you to release these clips, being careful not to disconnect any wires. It is normal for the plastic cover to produce some noise as it shifts and bends.
2. Bypass the water softener by pushing the handle in on the back of your unit. This will stop water from coming in or out of the softener while you work:
3. Locate the Venturi hanging off the left-hand side of softener head. The venturi is a gray plastic base with a white cone cap (pictured below).
4. Unscrew the cone cap and take out all seven (7) internal pieces, so you are left with just the empty gray housing. Make sure to keep these pieces in order!
5. Clean the internal parts with warm, soapy water. Feel free to use a paper clip or similar tool to clear any debris from the two black circular flow plugs, as they both have a small hole in the center. Pay special attention to the flat black gasket. Overtime and depending on water quality, normal wear and tear can happen to this piece. If you notice any damage, it should be replaced. You can purchase replacement parts here: Purchasing Replacement Parts.
6. Reassemble the internal parts using the exploded view (pictured below). *Please note that some parts have numbers or letters printed on them – these should face UP when reassembling.
7. Return the top cover to the unit and pull the bypass back out.
